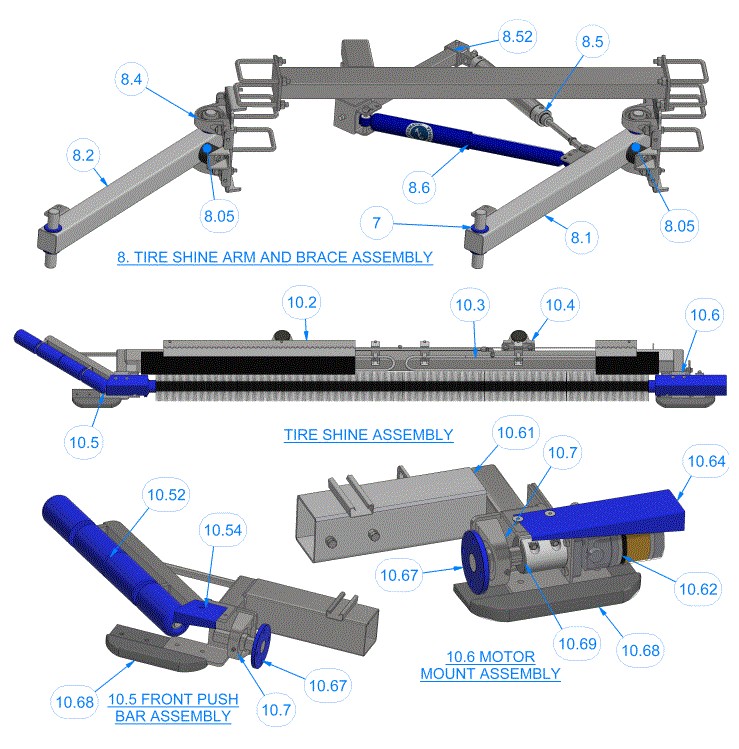

FM1 Finishing Module - Other Passenger Side Assemblies
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| TB2BBX32 | FRONT ARM | 8.1 | 1 | ||
| TB2BCX32 | REAR ARM | 8.2 | 1 | ||
| TB3B-CUS999 | TIRE BRUSH SIDE | - | 1 | ||
| HBB-212SCH40-45-375 | HORIZONTAL BRACE BAR 45” 3/8” | 8 | 8 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 16 | ||
|
|
WA1DBB | Rubber Bumper | 4 | ||
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 6 | ||
| TB2AAC | PILLOW BLOCK MOUNTING PLATE | 8.3 | 2 | ||
| TB2AACA | Mounting Plate | - | 2 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 2 | ||
| UB-SQ050x17 | Square U-Bolt 1/2’’x17’’LG | - | 4 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
| BRG-RB1WB-TB1WC | PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) | 8.4/10.4 | 4 | ||
| BRG-207CPE-NP | Cap | - | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 4 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
| HN1216 | -w/ HEX NUT 1/2’’ | - | 16 | ||
| TB2AF | TIRE WASHER RETRACT KIT | 8.5 | 1 set | ||
| TB2AGB-1104 | REAR MOUNT for Air Cylinder | 8.52 | 1 | ||
|
|
AC2X8 | AIR CYLINDER (2’’ Bore, 8’’ Stroke) | - | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 2.2 | 1 | |
| WA1GC | Front pin ½” x 2” LG | 2.5 | 1 | ||
| CP1-2 | COTTER PIN | - | 2 | ||
| WA1P | RETRACT AIR CONTROL PANEL(OPTIONAL) | - | 1 | ||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | 18 | 1 | ||
| WA1FAA | Shock Absorber | 3.1 | 4 | ||
| TB2AG-1104 | SHOCK ABSORBER’S MOUNTING | 1 | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | 3.2 | 8 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | 8.83 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | 3.4 | 4 | |
| TB3ADB-4B-CUS999-EL | BRUSH DRIVE ASSEMBLY (4-Bolt spindle Des.) | - | 1 |
