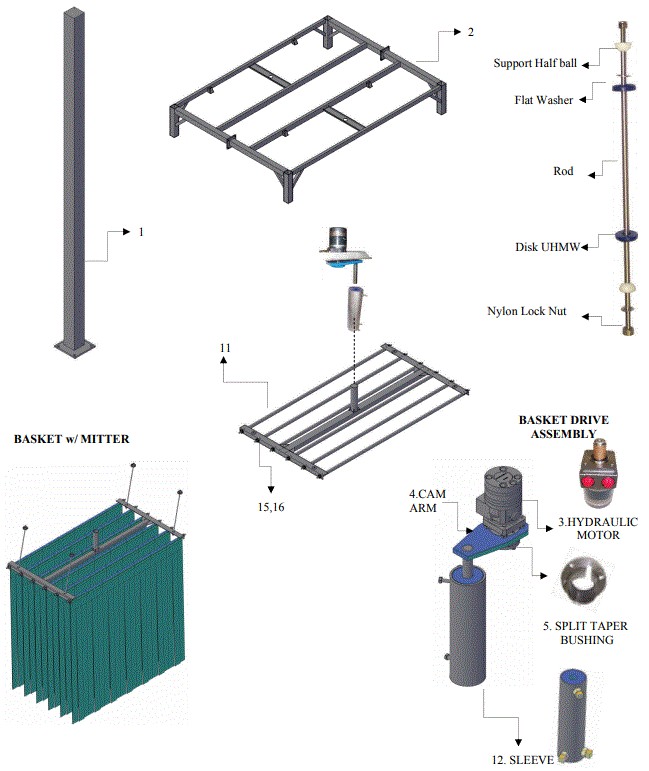

Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
---|---|---|---|---|---|
MC1A | LEG | 1 | 4 | ||
DM2B | FRAME ASSEMBLY | 2 | 1 | ||
SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 16 | |||
HHCS1213150 | Hex Head Cap Screw 1/2”-13 x 1 1/2” LG | 8 | |||
FW12 | Flat Washer 1/2”I.D.x1-1/4”O.D. | 8 | |||
SLW12 | Split Lock Washer 1/2” | 16 | |||
MC2BB-1104 | Basket Drive Assembly: | 2 | |||
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 3 | 2 | ||
EL90STL050JIC050NPTF | Straight Fitting ½” NPTM x ½ ” JIC | 4 | |||
MC2BBA-P1-0615 | Cam Arm (w/welded weld-on hub) | - | 2 | ||
STB-P1X100 | Split Taper Bushing P1 1” | 4 | 2 | ||
HHCS3816075 | w/Hex Head Screw | 5 | 8 | ||
MC1BC-S | Top Water Manifold assembly | - | 2 | ||
MC1BCA | Straight Top Water Manifold | - | 2 | ||
SAE140109P-8 | Hollow Hex Plug ½” NPTM | 2 | |||
BRBPP050x050 | Barb 1/2”x ½” NPTM | 2 | |||
NZ14 | Nozzle ¼” NPTM | 16 | |||
PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 8 | ||
MC1C | BASKET SUPPORT ROD ASSEMBLY: | - | 8 | ||
MC1C1-102307 | Basket support Rod ½” x 27” lg. | 6 | 8 | ||
MC1C2 | Basket support Disk UHMW | 7 | 16 | ||
MC1C3 | Basket support Halfball | 8 | 16 | ||
FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 9 | 16 | ||
NLN1213 | Nylon Lock Nut ½”-13 | 10 | 16 | ||
MC2D | BASKET DRIVE ASSEMBLY: | - | 2 | ||
MC2DA | Basket Frame 7’ | 11 | 2 | ||
MC1DB | Sleeve Assembly | - | 2 | ||
MC1DB1 | Sleeve | 12 | 2 | ||
MC1DB2 | UHMW Bushing 1” I.D. | 13 | 2 | ||
SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 6 | ||
HN3816 | HEX NUTS 3/8’’ | - | 6 | ||
MC2DC | Curtain Rod Assembly | - | 12 | ||
MC2DCA | Curtain Rod 7’4”lg. | 14 | 12 | ||
MC1DC2-3-4x2x1-8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | 15 | 24 | ||
PLHN3410 | Plastic Hex Nut ¾”-10 | 16 | 48 | ||
MC1E | CURTAIN (CLOTH) | 17 | 84 | ||
DM2L | HYDRAULIC INSTALLATION | ||||
SAE010115-8 | Tube Support Sleeves ½” JIC | ||||
SAE070110-8 | Nuts ½” JIC | ||||
DMP1-2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20) |
