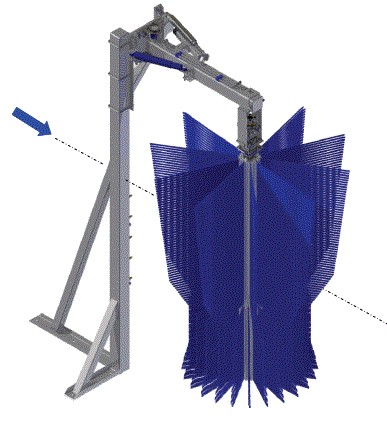

SW2 Free Standing Side Washer - Hydraulic and Water Installation
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| SW1L | WATER INSTALLATION: | 17 | 1 set | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | 17.1 | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | |
| NZ1-4 | Nozzle ¼” NPTM | - | 10 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| WA1LB | Hydraulic hose assembly: | - | 8 | ||
| SAE100R7-08x34 | Hydraulic Hose 3/8”I.D.x34“lg., thermoplastic | - | 8 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
| DMP1-2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20) | - | 4 |
