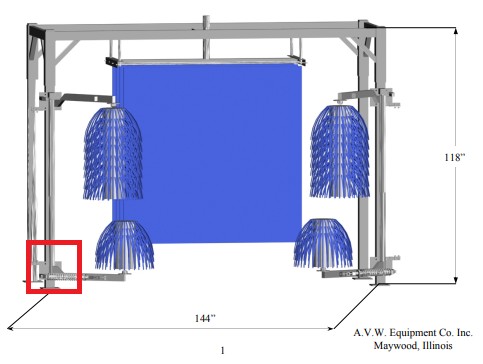

CB1MM5 HYDRAULIC INSTALLATION - LOWER BRUSH - PASSENGER SIDE




SKU Details

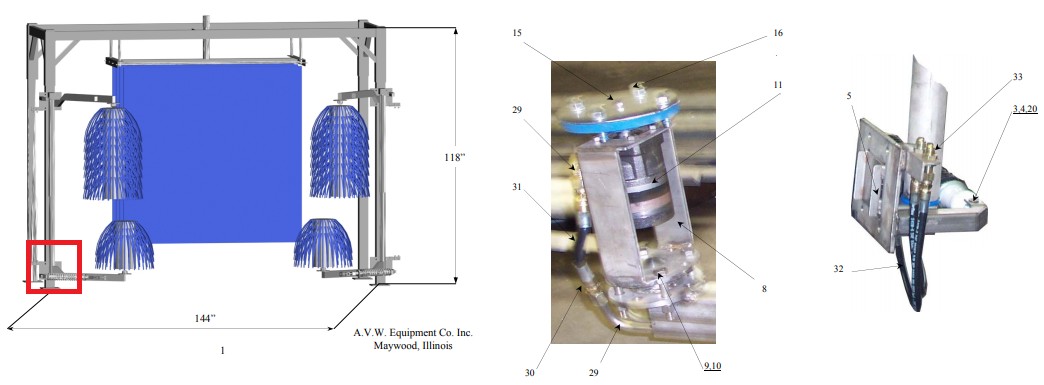

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
RB1LP HYDRAULIC INSTALLATION: - 1

RB1LPA Hydraulic Tube Assembly: 29 2

RB1LPA1x37 Hydraulic tube ½ ”O.D.xW.035”X37’’LG, stainless stee - 2
SAE070115-8 Tube support sleeves ½” JIC - 4
SAE070110-8 Nuts ½” JIC - 4
RB1LTC1-2 Tube Clamp ½ ” - 2

SAE070201-8-8 Fitting 90°elbow ½” JIC x ½ ”JIC 30 2
BB1LDB Hose Assembly: 34 2
SAE100R7-06x10 Hydraulic hose 3/8”I.D.x10”lg., thermoplastic - 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

RB1LDD Hydraulic Hose Assembly; 32 2

SAE100R7-06x18 Hydraulic hose 3/8”I.D.x18”lg., thermoplastic - 2
FC5807-0806 Crimp Fitting SAE 37° JIC male flare - 2

SAE070601-8-8 Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass 33 2
