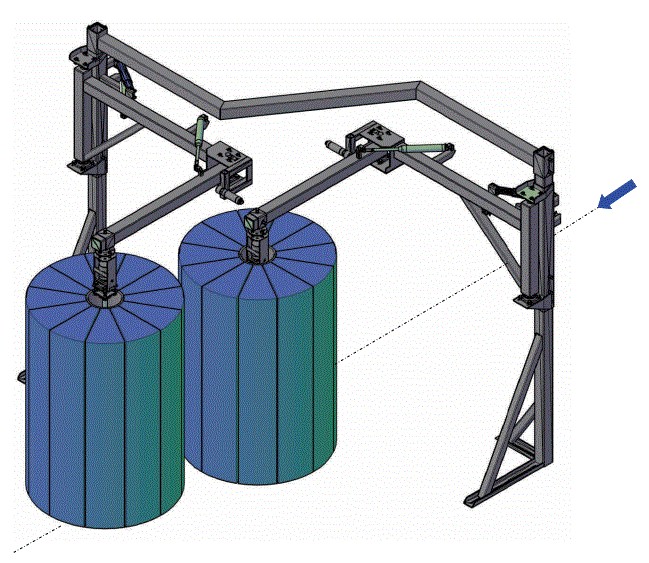

GW1 GRILL WASHER - Passenger Side
The AVW FREE STANDING GRILL APPLICATOR operate to clean front ends & grills stainless steel structure. It mainly focuses on the front at the Vehicle than retracts and waits for the next grill. No complicated controls because of the design it can self adjust to most conveyor speed requirements. Simple design and low maintenance.
Product Features:
- Hydraulic Motors
- For Wrap Around: Displacement 11.9cu.in./rev., 60 RPM)
- Water: ½” NPT Outlet
- Equipment Center Line: 28” from inside Conveyor Rail

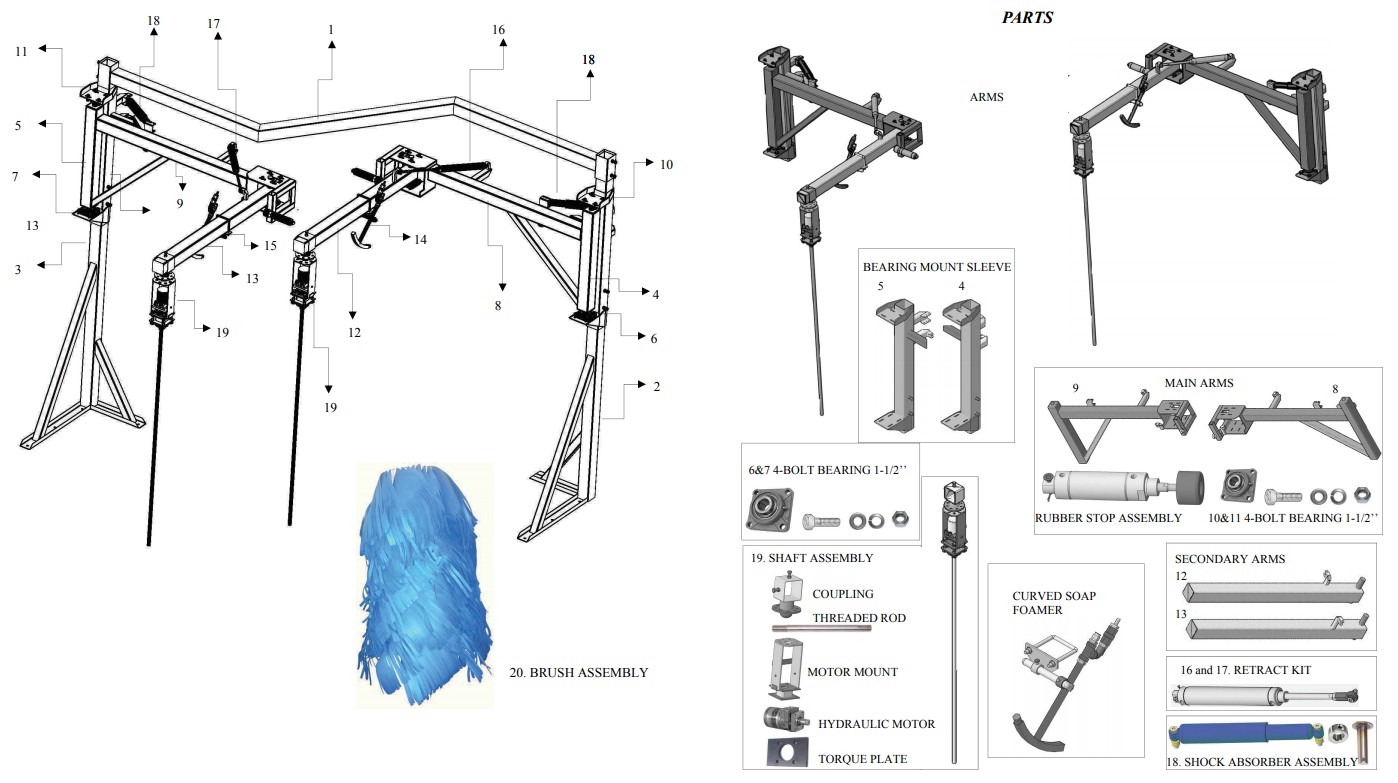

SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| GW1B | LEG | 2 & 3 | 1 | ||
| GW1E | GRILL WASHER ASSEMBLY: | - | 1 | ||
| GW1G | BEARING MOUNT SLEEVE | 4 & 5 | 1 | ||
| WA1KCB | 4-bolt Bearing 1 ½” | 6 & 7 | 2 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 8 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 8 | ||
| SLW1/2 | Split Lock Washer | - | 8 | ||
| GW1J | MAIN ARM | 8 & 9 | 1 | ||
| GW1HB | RUBBER STOP ASSEMBLY: | 1 | |||
|
|
AC2x3 | CYLINDER | 1 | ||
| HN1220 | Hex Nut: 1/2"-20 SS) | 1 | |||
|
|
WA1DBB | Rubber Bumper | 1 | ||
| GW1L | SECONDARY ARM | 12 & 13 | 1 | ||
| SF0405 | Soap Foamer Manifolds, | 14 & 15 | 1 | ||
| SF0405A | CURVED COMPACT FOAMER MANIFOLD w/Dual COLAR and Foam G. | - | 1 | ||
| SF0405B | ROUND EXTENSION ARM 8”LG | - | 1 | ||
|
|
SF0405C | MOUNTING PLATE w/COLLAR | - | 1 | |
|
|
UB-SQ0375x1400 | w/SQ.U BOLTS 3/8’’ SIZE and | - | 1 | |
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 2 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 2 | ||
| GW1P | RETRACT KIT: | 16 & 17 | 2 | ||
|
|
AC2X10 | AIR CYLINDER 2”x10” | 2 | ||
| BJ1/2-20 | BALL JOINT ROD END1/2-20 | 2 | |||
| WA1GC | Front pin ½” x 2” LG | 2 | |||
| WA1GD | Collar ½” | 2 | |||
| WA1GB | Pin 3/8”x1½”lg. | 2 | |||
| CP3/8 | Cotter Pin | 2 | |||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | 18 | 1 | ||
| WA1FAA | Shock Absorber | - | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
| GW1M | GRILL WASHER SHAFT ASSEMBLY: | 19 | 1 | ||
| GW1MA | Coupling | - | 1 | ||
| THRD1213400 | (connection of the brush with disk): | - | 4 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
| GW1MB | Motor Mount | - | 1 | ||
| HHCS3816075 | w/Hex Head Screw | - | 1 | ||
| NLN3816 | Nylon Lock Nuts | - | 1 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | - | 1 | |
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | - | 2 | ||
| WA1K1 | Torque Plate | - | 1 | ||
| GW1MP | -Brush Shaft 1½” x 68½”LG.(driver) / 77½“LG.(pass.) | - | 1 | ||
| GW1R | Brush 1250, Grill Washer, Cloth & Core | 20 | 1 | ||
| HHCS12113150 | - | 4 |
