PSD35 SINGLE PUMPING STATION 30GPM
SKU Details

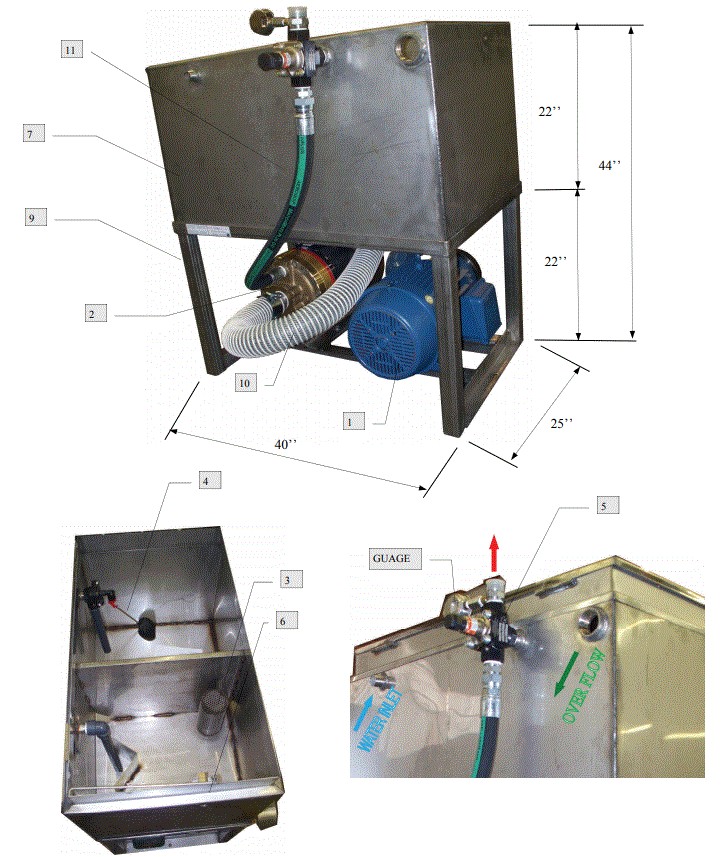

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| EM20-1800-256TC | MOTOR | 1 | 1 | ||
|
|
PSD35-P35 | HYDRA-CELL” PUMP, displacement 8.14[cu.in./rev.] | 2 | 1 | |
| BRB300X250 | Hose Barb, D35 Intake, 3" Barb x 2-1/2" NPT, Straight) | - | 1 | ||
|
|
SHV-33V800SK | PUMP PULLEY - 8.00”O.D “APEX” | - | 1 | |
| SHV-33V1400SK | PUMP PULLEY - 14.00”O.D “APEX” | - | 1 | ||
|
|

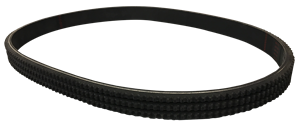

VBELT3R750 | V-BELT 75”LG. | - | 1 | |
|
|

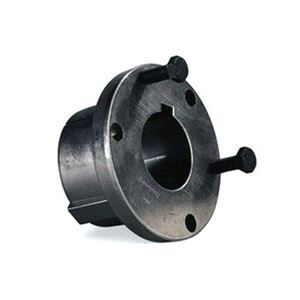

STB-SK158 | SPLIT TAPER BUSHING 1-5/8” “APEX” | - | 1 | |
| STB-SK200 | SPLIT TAPER BUSHING 2” for Pump Pulley | - | 1 | ||
| PSD35-SS35 | A.V.W. HYDRAULIC SUCTION STRAINER, port size 3, Ø5” x 16 height, perforated metal (not threaded) | 3 | 1 | ||
| BRB300x300 | ANGLED BARB (HOSE NIPPLE) 3” x 3” not threaded) Welded to the bottom of the Tank (for Suction line/Intake Hose) | - | 1 | ||
|
|
FV1-0411 | JOBE TOPAZ VALVE 1 | 4 | 1 | |
|
|
PSD35-RV35 | PRESSURE REGULATING VALVE, capacity | 5 | 1 | |
| GP1500 | GAUGE 0-3000PSI bottom connection 1?4 ”, liquid filled | - | 1 | ||
| NV1-4-1007 | MINI BALL VALVE- -1/4"NPT Male x female | - | 1 | ||
| PSH25-PDT1x18 | BLACK PVC PIPE 1"sch 80 x 18" LG (Discharge Down Tube) | - | |||
|
|
LLS1 | LOW LEVEL SWITCH 1/4 (w/pipe 12”LG.) ? Madison Co | 6 | 1 | |
| PSD35-T | Tank: for Single D35 Pump Station, 40" x 25" x 22" H, Without Lid, Divid... | 7 | 1 | ||
| PSD35-V | Cover/Lid for Tank for D35 Pumping Stations, with Hinge and Support) | 8 | 1 | ||
| PSD35-A | STAND (Legs: Sq.Tub. 2” x 2” x 27”LG.& 39’’LG) | 9 | 1 | ||
| PSD35-PC | GUARD (PULLEYS’ COVER) | - | 2 | ||
| CNCTSTL125JIC125MNPT-TAP | Connector-Male, 1-1/4" JIC x 1-1/4"-11 MNPT | - | 1 | ||
| PSD35-NH | Intake Hose PVC, 3"I.D. x 50"LG) | 10 | 1 | ||
| PSD35-NHC | Clamp, Intake Hose, for 3" Hose I.D.) | - | 2 | ||
| PSD35-DH | DISCHARGE HOSE (PRESSURE LINE) 1-1/4”I.D. x 41”LG., 30’’, 28’’ Aeroquip | 11 | 1 |
