OCTASQUARED WRAP CONTOUR COMBO - OT2-WACB0405

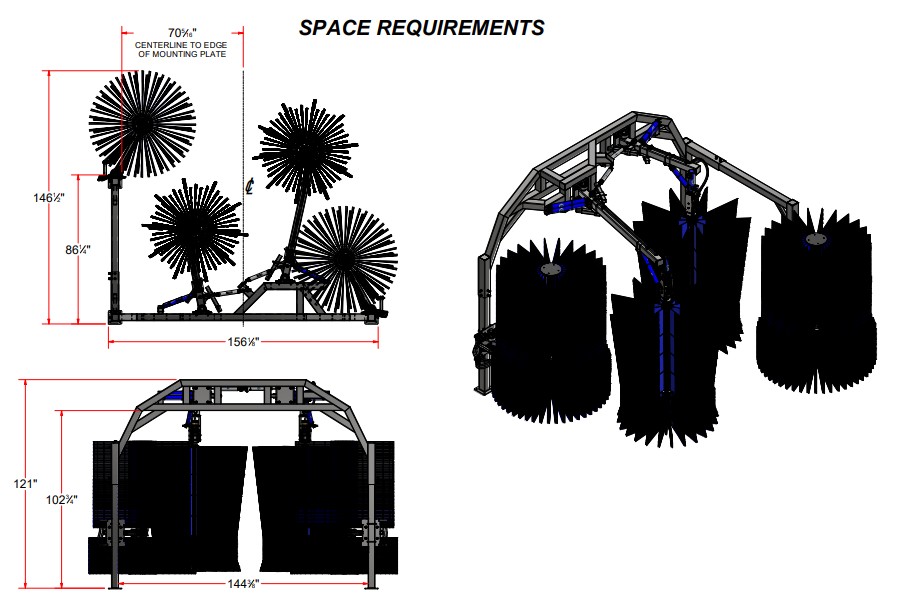

The AVW OctaSquared Wrap Contour Combo is ideal for space savings in short tunnels and where a sleek, inviting, and clean appearance is desired in longer tunnels. Constructed of heavy grade stainless steel, the contours are designed to rotate reverse of the Wrap Around and to provide constant pressure to the side of vehicles.
SKU Details

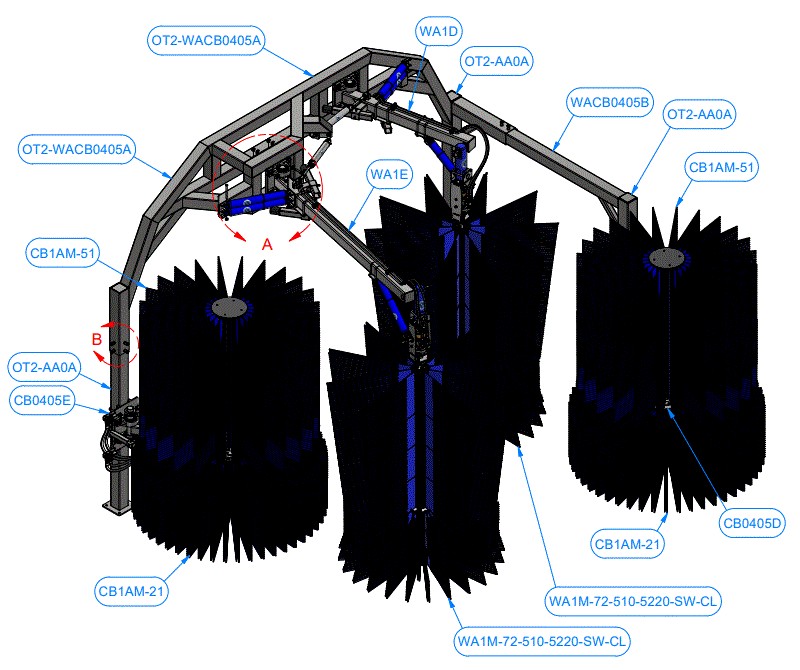

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| AC2X10-R | Retract Air Cylinder 2" x 10" | ||||
|
|
BRG-WA1WB | 2" PILLOW BLOCK | |||
|
|
CB1AM-51 | UPPER 51” ASSEMBLY | |||
| CB1AM-51 | UPPER BRUSH 51” ASSEMBLY: | ||||
| CB0405D | ARM ASSEMBLY | ||||
| CB0405E | ARM ASSEMBLY | ||||
| FW12 | Flat Washer 1/2”I.D.x1-1/4”O.D. | ||||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | ||||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | ||||
| HHCS51618100 | 5/16"-18 x 1" L Hex Screw | ||||
| OT2-AA0A | OCTASQUARED EMPTY ARCH LEG - 84" LG. | ||||
| OT2-WACB0405A | |||||
| P385 | Pin 3/8" x 5" LG | ||||
|
|
WA1D | DRIVER SIDE ARM ASSEMBLY: | |||
|
|
WA1E | PASSENGER SIDE ARM ASSEMBLY: | |||
|
|
WA1FC | COLLAR 3/8” | |||
|
|

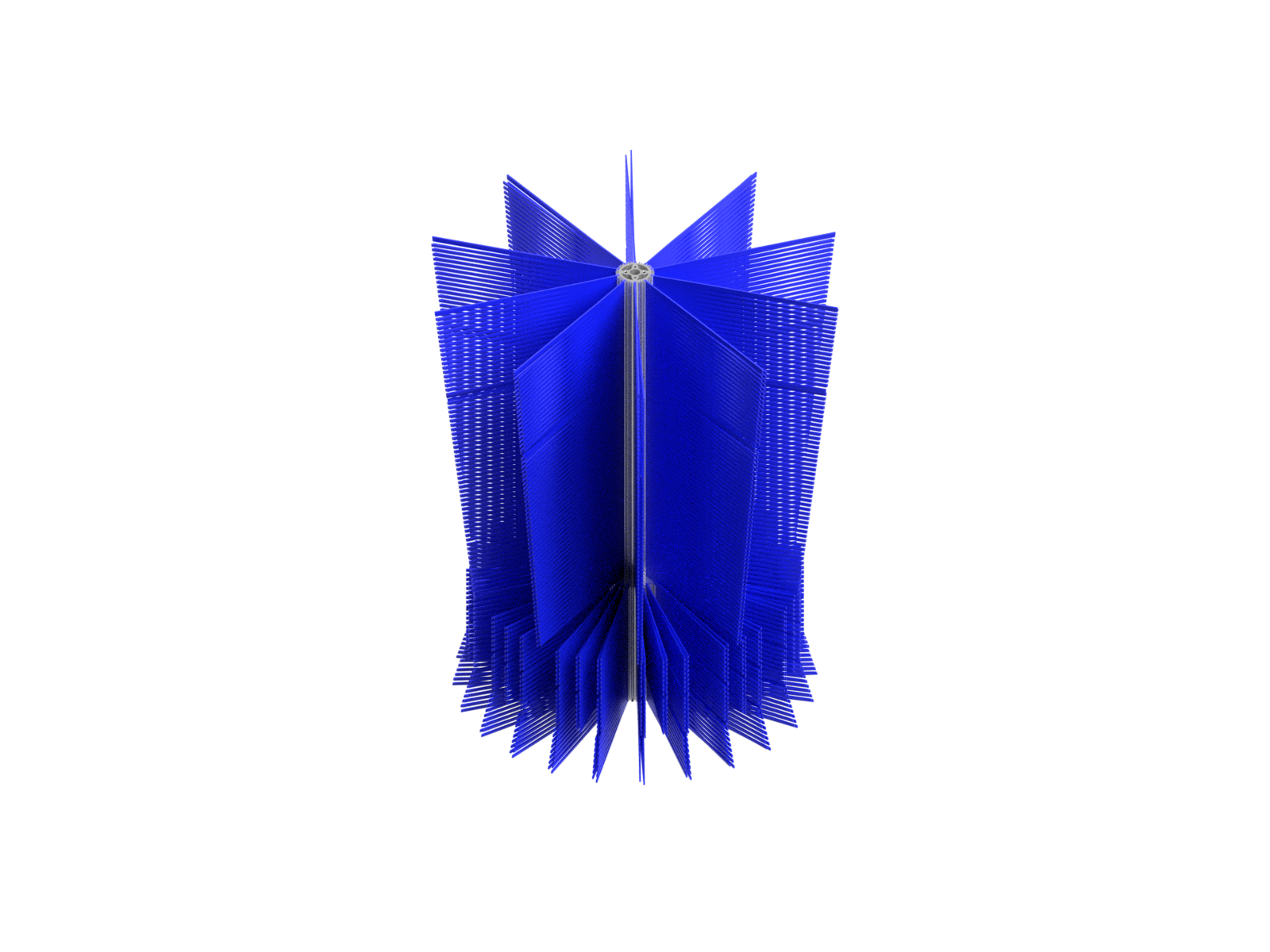

WA1M-72-510-5220-SW-CL | Wrap Brush Core & Cloth | |||
|
|
WA2FA | Shock Absorber Assembly | |||
| WACB0405B | 74" LG. EXTENSION ARM - WELDMENT |
