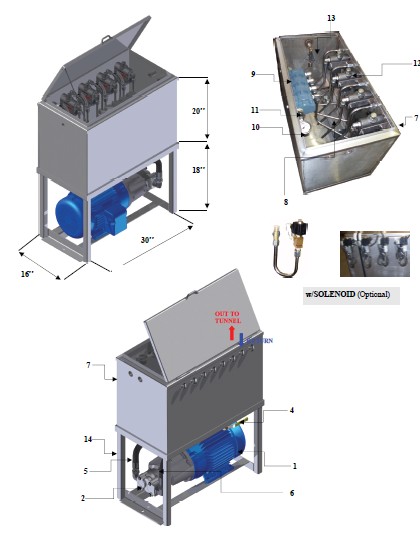

4-PORT HYDRAULIC POWER UNIT, Model HPU4-V
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
|
|
EM10-1800-215TC | ELECTRICAL MOTOR | 1 | 1 | |
| VP20-VICKERS | GEAR PUMP VICKERS straight shaft dia. Ø3/4” displacement 1.81[cu.in./ rev.] ,13.5GPM suction (inlet) 1 3/4” discharge (outlet) 3/4” | 2 | 1 | ||
| EL90STL125JIC1625ORB | GEAR PUMP INLET ELBOW 90° 1 1/4 JIC 37° Flare x 1-5/8”-12 UN/UNF-2A ORB, Steel | 2a | 1 | ||
| EL90STL075JIC10625ORB | GEAR PUMP OUTLET ELBOW 90° 3/4 JIC 37° Flare x 1-1/16” ORB, Steel | 1 | |||
|
|

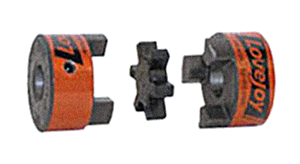

HPU3-4-PL | LOVEJOY - FLEXIBLE SHAFT COUPLING for Parker PUMP | 3 | 1 | |
| (HPU4-PLM, HPU4-PLP) | (motor shaft dia. 1-3/8”, pump shaft dia. 7/8”) | ||||
| (HPU3-4-SP) | w/SPIDER | 1 | |||
| BH0807-F2A | BELL HOUSING | - | 1 | ||
| BV11-4 | BALL VALVE 1 1/4” | 4 | 1 | ||
| HPU4-NH | INTAKE HOSE 1 1/4” I.D. x 16 1/2” L.G. | 5 | 1 | ||
| HPU4-DHU | 1” I.D. x 17-1/2”LG | 1 | |||
| HPU4-DHT | In tank: 1”I.D. x 11 1/2”LG. | 1 | |||
| HPU4-T | TANK 30” x 16” x 18” w/Two Couplings 3/4” | 7 | 1 | ||
|
|
SS150 | HYDRAULIC SUCTION STRAINER, port 1 1?2” NPT | 8 | 1 | |
| RBSAE140140-24-20 | w/Reducer Bushing 1½”NPT male x 1¼”NPT female | 1 | |||
|
|

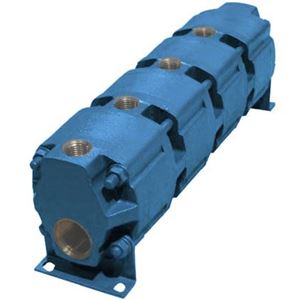

HPU4-FD4 | FLOW DIVIDER 4-SECTION UNIT | 9 | 1 | |
| GP1500 | GAUGE 0-3000PSI bottom connection 1?4 ”, liquid filled | 10 | 1 | ||
| NV1-4-1007 | MINI BALL VALVE- -1/4"NPT Male x female | 11 | 1 | ||
| SAE140140-16-4 | REDUCER BUSHING 1’’NPT male x 1/4NPT Female | - | 1 | ||
|
|

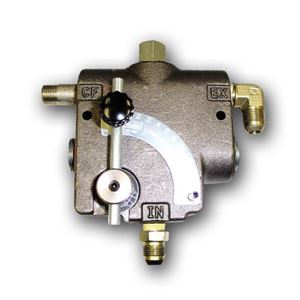

FC08 | FLOW CONTROL (SPEED CONTROL) 0-8GPM | 12 | 4 | |
| EL90STL050JIC0375FNP | Elbow 90 1/2” JIC | 4 | |||
| UNNELBLKHDSTL050JIC | Elbow Bulkhead 1/2”JIC | 4 | |||
| HPU1DC2-3-4X112X1-8 | Plastic Spacer 1/8” | 4 | |||
|
|
LLS1-SS | LOW LEVEL SWITCH (w/pipe 12”LG.) | 13 | 1 | |
| HPU4-A | STAND (Legs: sq.tub, 1-1/2” x 1-1/2” x 18”LG.) | 14 | 1 | ||
| HPU4-V | Power Unit (Hydraulic): 4-Port with Vickers Vane Pump | 15 | 1 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| SL120 | SOLENOID 120VAC (OPTIONAL) | 16 | 4 |
