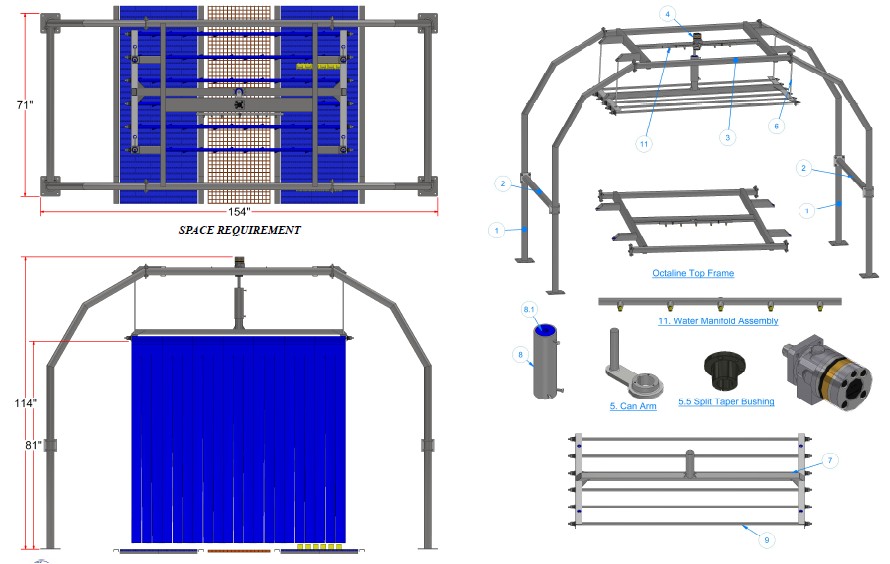

Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
---|---|---|---|---|---|
OT-AA0A | OCTALINE LEG ASSEMBLY | 1 | 4 | ||
HHCS12131050 | Hex Head Cap Screw 1/2”-13x1-1/2” LG | 16 | |||
FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 16 | |||
SLW12 | Split Lock Washer 1/2” | 16 | |||
HBB-21SCH40-60 | HORIZONTAL BRACE BARS | 2 | |||
UB-R050x300x1100 | 3’’Round U -Bolts 1/2” Size | 8 | |||
OT-MC2B | FRAME ASSEMBLY: | - | 1 | ||
OT-MC2BA | FRAME | 3 | 1 | ||
SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 16 | |||
HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 8 | |||
MC2BB | BASKET DRIVE ASSEMBLY: | - | 1 | ||

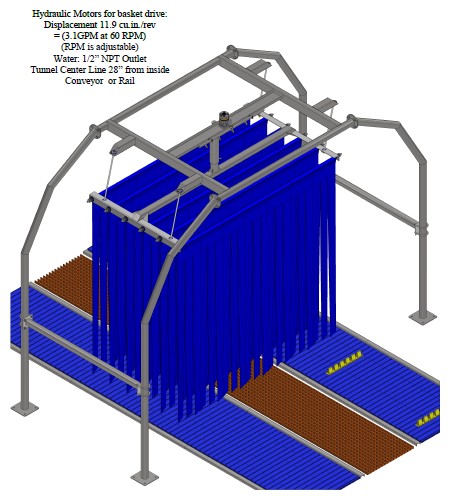

WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 4 | 1 | ||
MC2BBA-P1-0615 | Cam Arm (w/welded weld-on hub) | 5 | 1 | ||
STB-P1X118 | Split Taper Bushing P1 1 1/8” | 5.5 | 1 | ||
HHCS3816075 | w/Hex Head Screw | 4 | |||
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 6 | 4 | ||
MC1C1-102307 | Basket support Rod ½” x 27” lg. | - | 4 | ||
MC1C2 | Basket support Disk UHMW | - | 8 | ||
MC1C3 | Basket support Halfball | - | 8 | ||
NLN1213 | Nylon Lock Nut ½”-13 | - | 8 | ||
MC2D | BASKET DRIVE ASSEMBLY: | - | 1 | ||
MC2DA | Basket Frame 7’ | 7 | 1 | ||
MC1DB | Sleeve Assembly | - | 1 | ||
MC1DB1 | Sleeve | 8 | 1 | ||
MC1DB2 | UHMW Bushing 1” I.D. | 8.1 | 1 | ||
SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 3 | ||
HN3816 | HEX NUTS 3/8’’ | - | 3 | ||
MC2DC | Curtain Rod Assembly | 9 | 6 | ||
MC2DCA | Curtain Rod 7’4”lg. | - | 6 | ||
MC1DC2-3-4x2x1-8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | - | 12 | ||
PLHN3410 | Plastic Hex Nut ¾”-10 | 24 | |||
MC1E | CURTAIN (CLOTH) | 10 | 42 | ||
MC2L | HYDRAULIC & WATER INSTALLATION | - |
|
||
WA1LA | Side Water Manifold Assembly (on exit legs): | 11 | 2 | ||
WA1LAA | Manifold | - | 2 | ||
SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 2 | ||
BRBPP050x050 | Barb 1/2”x ½” NPTM | 2 | |||
NZ1-4 | Nozzle ¼” NPTM | - | 10 | ||
PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 |
