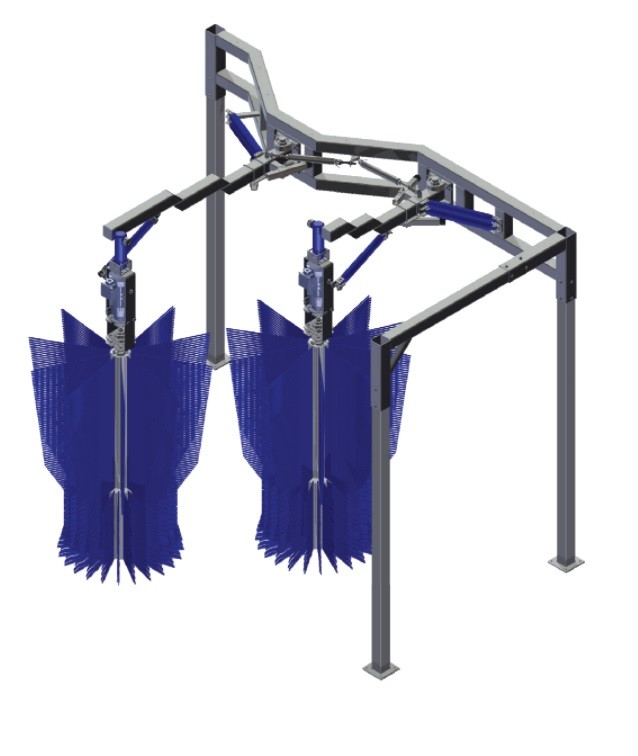

FREE STANDING WRAP AROUND, Model WA1-EL-1566
The AVW FREE STANDING WRAP AROUND operate on gravity. No complicated controls because of the design it can self adjust to most
Conveyor speed requirements. Simple design and low maintenance
Product Features:
- Electric Motors
- For Wrap Around : 1.5 HP 83.3 RPM)
- Water: 1?2” NPT Outlet
- Equipment Center Line
- 28” from inside Conveyor Rail

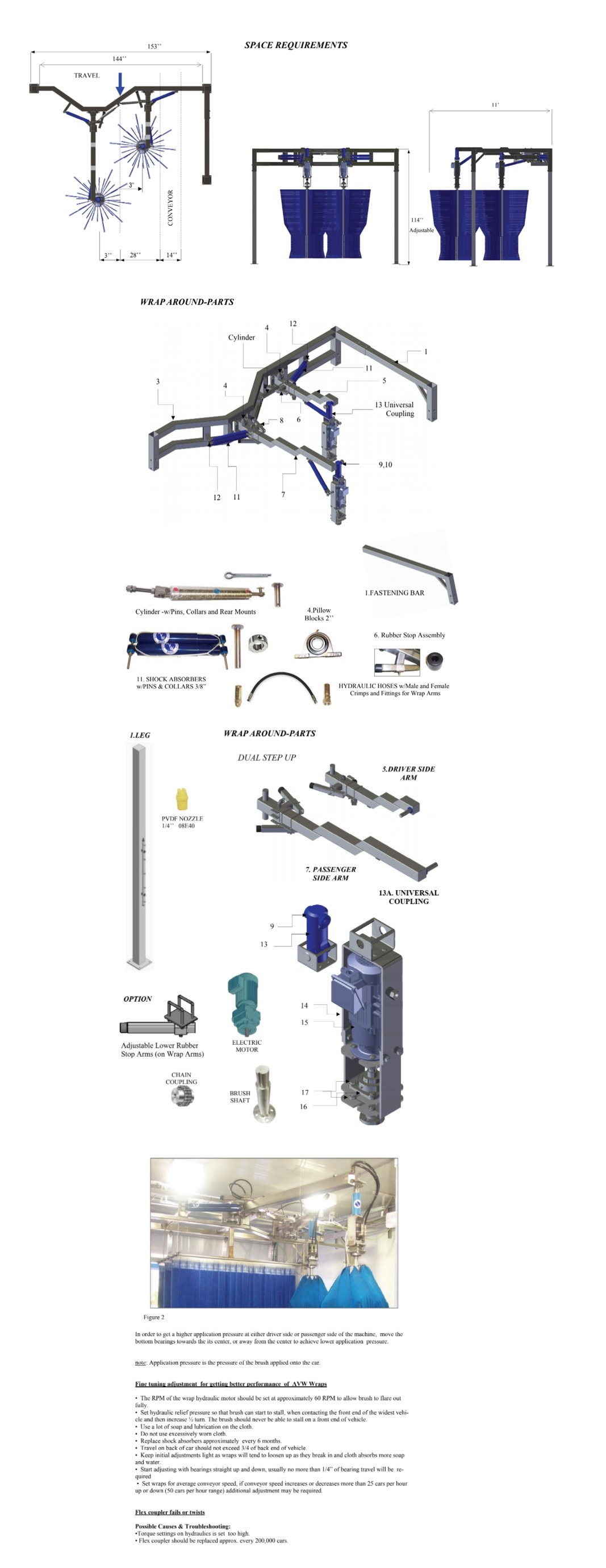

SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| WA1CB1AA | Extension Bar, for Wrap-Contour Third Leg | 1 | - | ||
| WC3A | Leg, w/Manifold, for Wrap Mitter Combo Leg, SS | 2 | 3 | ||
| WA1C | Z-CROSSBAR | 3 | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 8 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 8 | ||
| WA1WB | PILLOW BLOCK 2” | 4 | 4 | ||
| - | -6813-17 | 8228416 | |||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 16 | ||
| SLW1/2 | Split Lock Washer | -- | 816 | ||
| WA1D_EL | DRIVER SIDE ARM ASSEMBLY: | - | 1 | ||
| WA1DA-2000 | Driver Side Arm 48”lg. | 5 | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 68 | 22 | |
| WA1DBA | Stop Arm | 68 | 22 | ||
|
|
WA1DBB | Rubber Bumper | 68 | 22 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 68 | 22 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 6813 | 228 | ||
| HN3816 | HEX NUTS 3/8’’ | 6813 | 228 | ||
| WA3DB-2639 | ADJUSTABLE LOWER RUBBER STOP ARM (OPTION) | 6.18.1 | 11 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | 6.18.1 | 44 | ||
| WA1E-EL | PASSENGER SIDE ARM ASSEMBLY: | - | 1 | ||
| WA1EA-2000 | Passenger Side Arm 76”lg. | 7 | 1 | ||
| WA11-0112 | PLASTIC SPACER ( for UNIVERSAL COUPLING) | 9 | 2 | ||
| WA2J-2P | 2-PIECE COLLAR 1-1/2’’ | 10 | 2 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 11 | 2 | |
| WA1FAA | Shock Absorber | - | 2 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 4 | |
| WA1FB | PIN Æ3/8” x 6” LG. | 12 | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| WA2H-0112 | UNIVERSAL COUPLING ASSEMBLY | 13 | 2 | ||
| WA2HA-0112 | UHMW Flex Coupling | 13 | 2 | ||
| WA1H2 | UHMW Bushing 1 ½” I.D. | 13 | 2 | ||
| WA2HC | Mounting Channel | 13 | 2 | ||
| WA2HD | Shaft 1 ½” x6 ¼” LG | 13 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 13-- | 848 | ||
| WA8K-EL | WRAP AROUND SHAFT ASSEMBLY: | - | 2 | ||
| WA8KA-EL | Motor Mount | 14 | 2 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
| GRMTR1-5HP-21.1 Ratio | Electric Gear Motor, ,,Sumitomo” Gear Drive: CNVMS1H-6100YC21-1, 1.5 HP, RPM 83.3, Ratio 21:1 | 15 | 2 | ||
| WA5KB-EL-0114 | Brush Shaft Æ11?2”x101?2”lg. | - | 2 | ||
| - | Screw fastener set 3/8”, for collar | - | 2 | ||
| WA1KCB | 4-bolt Bearing 1 ½” | 16 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
| WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 18 | 2 |
