HPU4 4-PORT HYDRAULIC POWER UNIT
The AVW 4-PORT HYDRAULIC POWER UNIT features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage of fluid from controls on the floor. Fabricated from Stainless Steel.
Product Features:
- Heavy Duty Stainless Steel
- Multiple Banks
- Contained Controls
- 4-Port
- Clean Design
- ELECTRICAL MOTOR: 10HP, 1770RPM
- PUMP : 17.7GPM max at 1755 RPM
- DIMENSION: 30’’Wx16’’Dx 38’’H
- TANK: 30”Wx 16’’Dx 20”H
SKU Details

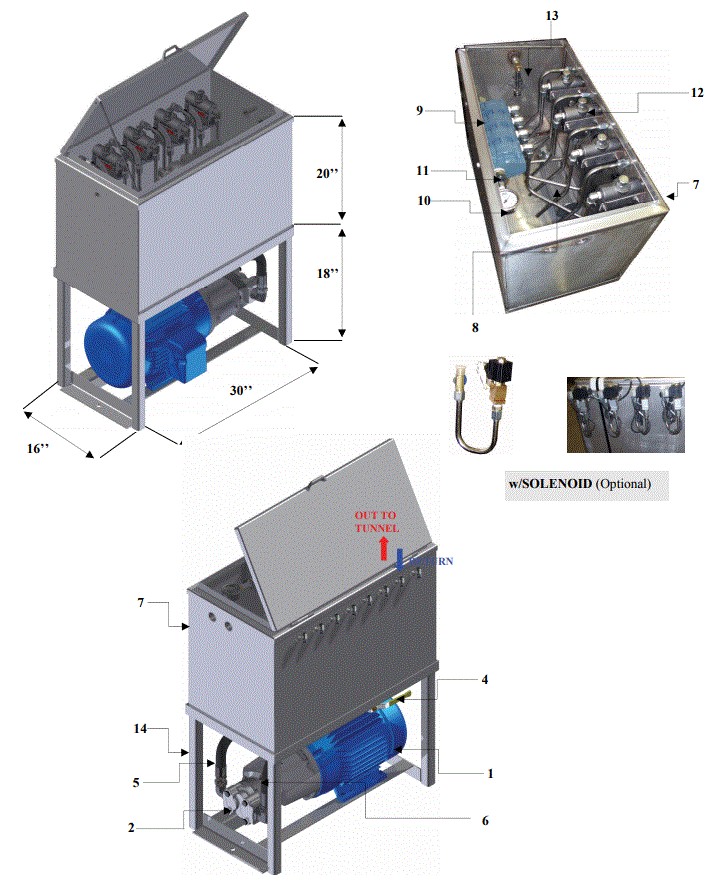

| Sku Images | Part# | Diagram Part # | Quantity | |
|---|---|---|---|---|
|
|
EM10-1800-215TC | 1 | 1 | |
| GP20-P16 | 2 | 1 | ||
| EL90STL125JIC1625ORB | 2a | 1 | ||
| EL90STL075JIC10625ORB | 1 | |||
|
|
HPU3-4-PL | 3 | 1 | |
| HPU4-PLM | ||||
| HPU4-PLP | ||||
| HPU3-4-SP | 1 | |||
| BH0807-F2B | - | 1 | ||
| BV11-4 | 4 | 1 | ||
| HPU4-NH | 5 | 1 | ||
| HPU4-DHU | 6 | 1 | ||
| HPU4-DHT | 1 | |||
| HPU4-T | 7 | 1 | ||
|
|
SS150 | 8 | 1 | |
| RBSAE140140-24-20 | 1 | |||
|
|
HPU4-FD4 | 9 | 1 | |
| GP1500 | 10 | 1 | ||
| NV1-4-1007 | 11 | 1 | ||
| SAE140140-16-4 | - | 1 | ||
|
|
FC08 | 12 | 4 | |
| EL90STL050JIC0375FNP | 4 | |||
| UNNELBLKHDSTL050JIC | 4 | |||
| HPU1DC2-3-4X112X1-8 | 4 | |||
|
|
LLS1-SS | 13 | 1 | |
| HPU4-A | 14 | 1 | ||
| HPU4-V | 15 | 1 | ||
| SAE070115-8 | - | |||
| SAE070110-8 | - | |||
| SL120 | 16 | 4 |
