HPU5 5-PORT HYDRAULIC POWER UNIT
The AVW 5-PORT HYDRAULIC POWER UNIT features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage of fluid from controls on the floor. Fabricated from Stainless Steel.
Product Features:
- Heavy Duty Stainless Steel
- Multiple Banks 5-port
- Contained Controls
- Clean Design
- ELECTRICAL MOTOR: 15HP, 1750RPM
- PUMP : 24GPM max at 1750RPM max
- DIMENSION: 38’’ W x 22’’D x40’’H
- TANK: 38” W x 22’’D x 20”H

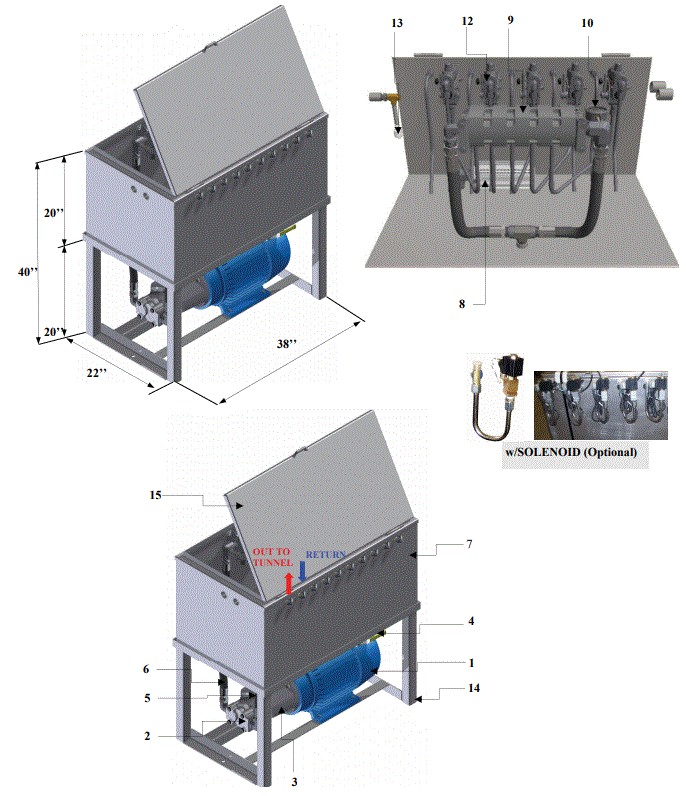

SKU Details
| Sku Images | Part# | Diagram Part # | Quantity | |
|---|---|---|---|---|
|
|
EM15-1800-254TC | 10 | 1 | |
|
|
GP25-P16 | 2 | 1 | |
| EL90STL125JIC1625ORB | 2a | 1 | ||
| EL90STL075JIC10625ORB | 1 | |||
|
|
HPU5-PL | 3 | 1Set | |
| HPU5-PLM | ||||
| HPU5-PLP | ||||
| HPU5-SP | 1 | |||
| BH0807-F2L-2B | - | 1 | ||
| BV11-4 | 4 | 1 | ||
| HPU5-NH | 5 | 1 | ||
| HPU5-DHU | 1 | |||
| HPU5-DHT | 2 | |||
| HPU5-T | 7 | 1 | ||
|
|
SS150 | 8 | 1 | |
| RBSAE140140-24-20 | 1 | |||
|
|
HPU5-FD5 | 9 | 1 | |
| GP1500 | 10 | 1 | ||
| NV1-4-1007 | 11 | 1 | ||
| NV1-4 | ||||
|
|
FC08 | 12 | 5 | |
| EL90STL050JIC0375FNP | 5 | |||
| UNNELBLKHDSTL050JIC | 5 | |||
| HPU1DC2-3-4X112X1-8 | 5 | |||
|
|
LLS1-SS | 13 | 1 | |
| HPU5-A | 14 | 1 | ||
| HPU5-V | 15 | 1 | ||
| SAE 070115-8 | ||||
| SAE 070110-8 | ||||
| SL120 | 16 | 5 |
