HPU6 6-PORT HYDRAULIC POWER UNIT
The AVW 6-PORT HYDRAULIC POWER UNIT features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage of fluid from controls on the floor. Fabricated from Stainless Steel.
Product Features:
- Heavy Duty Stainless Steel
- Multiple Banks
- Contained Controls
- 6-Port
- Clean Design
- ELECTRICAL MOTOR: 20HP, 1755RPM
- PUMP : 40GPM max
- DIMENSION: 38’’ W x 22’’D x40’’H
- TANK: 38” W x 22’’D x 20”H
SKU Details

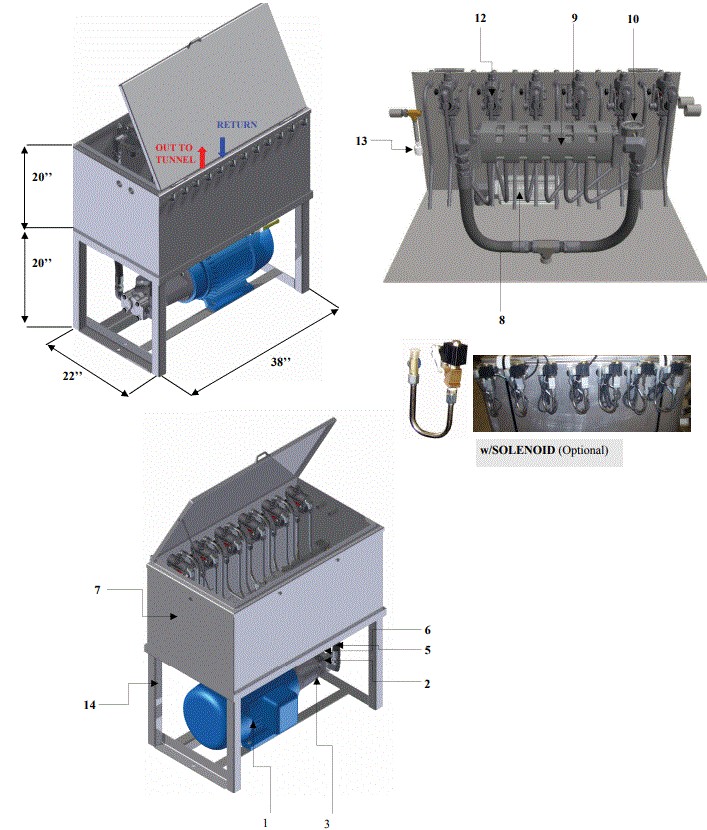

| Sku Images | Part# | Diagram Part # | Quantity | |
|---|---|---|---|---|
| EM20-1800-256TC | 1 | 1 | ||
|
|
GP30-P350 | 2 | 1 | |
| EL90STL125JIC1875ORB | 2a | 1 | ||
| EL90STL100JIC13125ORB | 1 | |||
| HPU6-7-PL | 3 | 1 | ||
| HPU6-7-PLM | ||||
| HPU6-7-PLP | ||||
| HPU6-7-SP | ||||
| BH0807F2L-2B | - | 1 | ||
| BV11-4 | 4 | 1 | ||
| HPU6-NH | 5 | 1 | ||
| HPU6-DHU | 1 | |||
| HPU6-DHT | 2 | |||
| HPU6-T | 7 | 1 | ||
|
|
SS150 | 8 | 1 | |
| RBSAE140140-24-20 | ||||
|
|

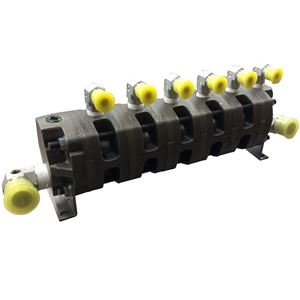

HPU6-FD6 | 9 | 1 | |
| GP1500 | 10 | 1 | ||
| NV1-4-1007 | 11 | 1 | ||
| NV1-4 | ||||
|
|
FC08 | 12 | 6 | |
| EL90STL050JIC0375FNP | 6 | |||
| UNNELBLKHDSTL050JIC | 6 | |||
| HPU1DC2-3-4X112X1-8 | 6 | |||
|
|
LLS1 | 13 | 1 | |
| HPU6-A | 14 | 1 | ||
| HPU6-V | 15 | 1 | ||
| LS1 | - | 1 | ||
| SAE070115-8 | ||||
| SAE070110-8 | ||||
| SL120 | 16 | 6 |
