HPU7 7-PORT HYDRAULIC POWER UNIT
The AVW 7-PORT HYDRAULIC POWER UNIT features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage of fluid from controls on the floor. Fabricated from Stainless Steel.
Product Features:
- Heavy Duty Stainless Steel
- Multiple Banks
- Contained Controls
- 7-Port
- Clean Design
- ELECTRICAL MOTOR: 20HP, 1760RPM
- PUMP : 40GPM max
- DIMENSION: 38’’Wx22’’Dx 40’’H
- TANK: 38”Wx 22’’Dx 20”H

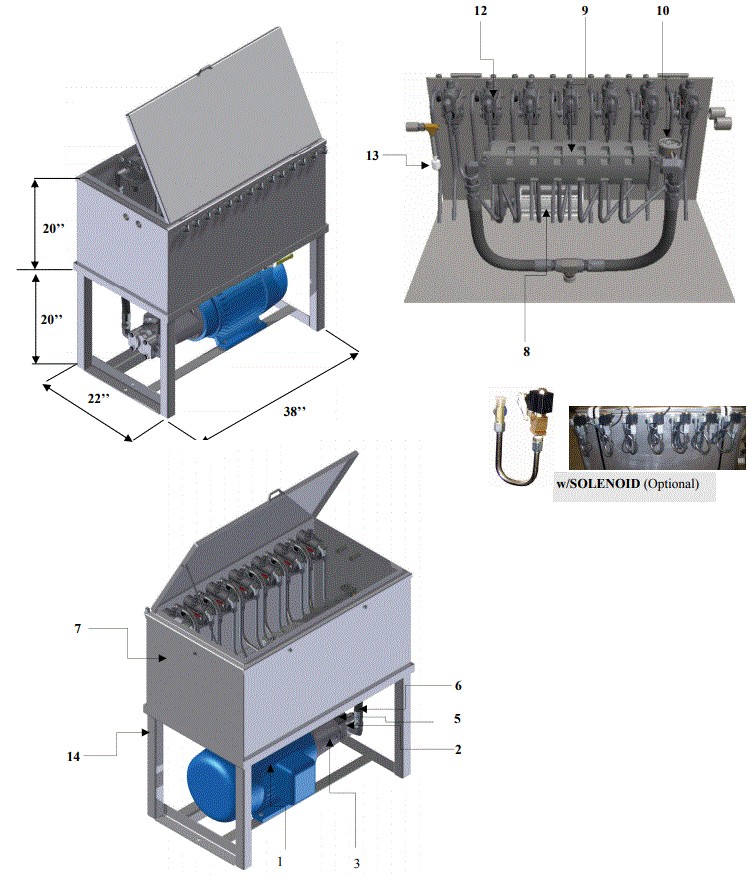

SKU Details
| Sku Images | Part# | Diagram Part # | Quantity | |
|---|---|---|---|---|
| EM20-1800-256TC | 1 | 1 | ||
|
|
GP30-P350 | 2 | 1 | |
| EL90STL125JIC1875ORB | 2a | 1 | ||
| EL90STL100JIC13125ORB | 1 | |||
| HPU6-7-PL | 3 | 1 | ||
| HPU6-7-PLM | ||||
| HPU6-7-PLP | ||||
| HPU6-7-SP | ||||
| BH0807F2L-2B | - | 1 | ||
| BV11-4 | 4 | 1 | ||
| HPU7-NH | 5 | 1 | ||
| HPU7-DHU | 1 | |||
| HPU7-DHT | 2 | |||
| HPU7-T | 7 | 1 | ||
|
|
SS150 | 8 | 1 | |
| RBSAE140140-24-20 | 1 | |||
|
|
HPU7-FD7 | 9 | 1 | |
| GP1500 | 10 | 1 | ||
| NV1-4-1007 | 11 | 1 | ||
| NV1-4 | ||||
|
|
FC08 | 12 | 7 | |
| EL90STL050JIC0375FNP | 7 | |||
| UNNELBLKHDSTL050JIC HPU1DC2-3-4x112x1-8 | 7 | |||
|
|
LLS1 | 13 | 1 | |
| HPU7-A | 14 | 1 | ||
| HPU7-V | 15 | 1 | ||
| SAE 070115-8 | ||||
| SAE 070110-8 | ||||
| SL120 | 16 | 7 |
