PSH25 SINGLE PUMPING STATION 20GPM
The AVW SINGLE HIGH PRESSURE PUMPING STATION features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage of fluids from controls on the floor.
Product Features:
- Heavy Duty Stainless Steel
- Contained Controls
- Clean Design
- ELECTRICAL MOTOR: 15HP, 1750RPM
- PUMP : 20GPM max at 1050RPM max
- DIMENSION: 38’’Wx22’’D x40’’H
- TANK: 38”Wx22’’Dx 20”H
SKU Details

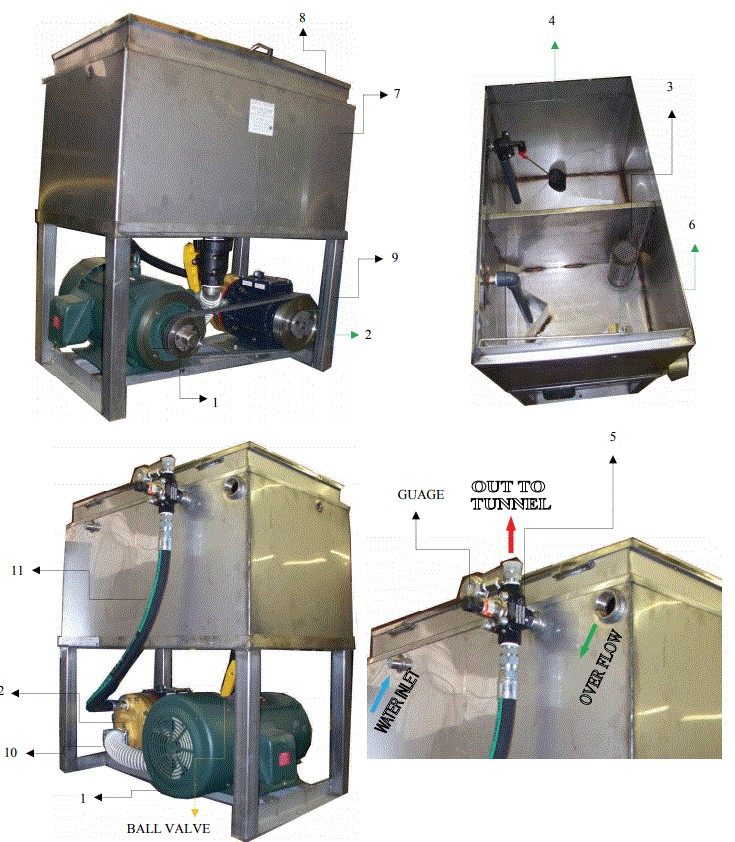

| Sku Images | Part# | Diagram Part # | Quantity | |
|---|---|---|---|---|
|
|
BV200X200 | - | 1 | |
| CNCTSTL100JIC100MNPT-TAP | - | 1 | ||
|
|
EM15-1800-254TC | 1 | 1 | |
| PSH25-DH | 11 | 1 | ||
| BRB200x150 | - | 1 | ||
|
|
SHV-33V500SDS | - | 1 | |
|
|
SHV-33V800SK | - | 1 | |
|
|

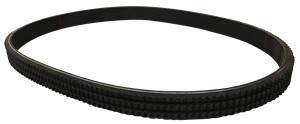

VBELT3R600 | - | 1 | |
|
|
STB-SDS158 | - | 1 | |
|
|
STB-SK118 | - | 1 | |
| BRB200x200 | - | |||
|
|
FV1-0411 | 4 | 1 | |
|
|
PSH25-RV20 | 5 | 1 | |
| GP1500 | - | 1 | ||
| NV1-4-1007 | - | 1 | ||
|
|
LLS1 | 6 | 1 |
